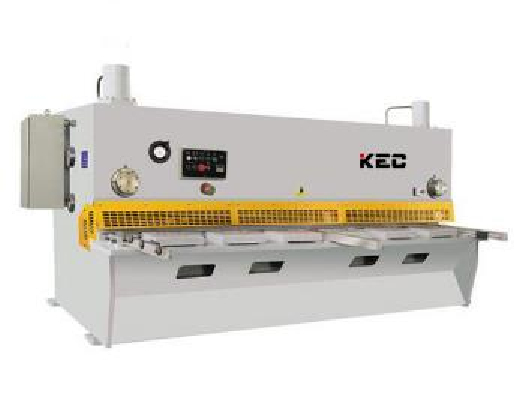

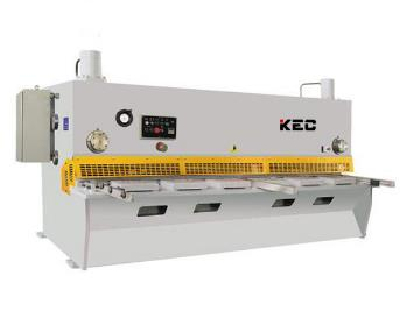

QC11Y BRAKE TYPE PLATE SHEARING MACHINE

QC11Y BRAKE TYPE PLATE SHEARING MACHINE

  • Min.Order Quantity: 1 Set
  • Supply Ability: 3 Sets per Month
  • Port: shanghai
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier KEC manufacturer co., LTD
| Factory
Experience:2008-03-25
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  KEC
  • Model Number:  QC11Y

This machine adopts the steel plate welded structure, the machine body uses the finite element analysis design, the vibration time effectiveness eliminates the internal stress, causes the fuselage to be stable, reliable.

1 by the three point support rolling guide to eliminate the support gap, improve the cutting precision.

2 the shear angle can be adjusted in a certain range, which can reduce the deformation of the shear material to the ideal state, and can also be used to cut the material.

3 shear stroke adjustment, improve the work efficiency, and can realize the sectional shear function.

4 after the block design of the manual lifting function, easy to ultra long plate shear.

5 the inner side of the wall plate is provided with a manual filling pump, which is convenient to operate and ensures the lubrication of the key parts.

6 plug-in type hydraulic system, slow temperature increase, enhance the reliability and safety operation of machine.

  • Place of Origin:  China
  • Brand Name:  KEC
  • Model Number:  QC11Y




TYPE

CUT THINKNESS
(mm)

CUT WIDE
(mm)

STROKE TIMES
( A MIN)

BACK GAUGE RANGE
(mm)

CUT ANGLE
( )

THROAT DEPTH(mm)

POWER(kw)

OUTLINE DIMENSION

(L×W×H)(mm)

6×2500

6

2500

20-40

750

0.5-1.5

80

7.5

3000×2075×1920

6×3200

6

3200

16-45

750

0.5-1.5

80

7.5

3130×2075×1970

6×4000

6

4000

14-45

750

0.5-1.5

80

7.5

4530×2075×2000

6×5000

6

5000

11-40

750

0.5-1.5

80

7.5

6430×2075×2520

6×6000

6

6000

9-36

750

0.5-1.5

80

7.5

7530×2075×2210

7×7000

7

7000

7-28

750

0.5-1.5

80

7.5

7530×2075×2600

6×2500

8

2500

20-45

750

0.5-1.5

80

7.5

3040×2075×1920

6×3200

8

3200

16-45

750

0.5-1.5

80

7.5

3740×2075×1920

12×2500

12

2500

12-35

1000

0.5-2

80

15

3110×2575×2210

12×3200

12

3200

7-35

1000

0.5-2

80

15

3810×2575×2500

12×4000

12

4000

9-35

1000

0.5-2

80

15

4610×2575×2500

16×2500

16

2500

16-40

1000

0.5-2.6

80

22

3130×2655×2200

16×4000

16

4000

12-40

1000

0.5-2.5

80

20

4430×2655×2570

20×2500

20

2500

16-40

1000

0.5-2.6

80

20

3100×2600×2300

20×4000

20

4000

12-40

1000

0.5-5.5

80

30

4600×2055×2720

25×3200

25

3200

8-20

1000

0.5-3.5

80

37

3610×2000×3300
